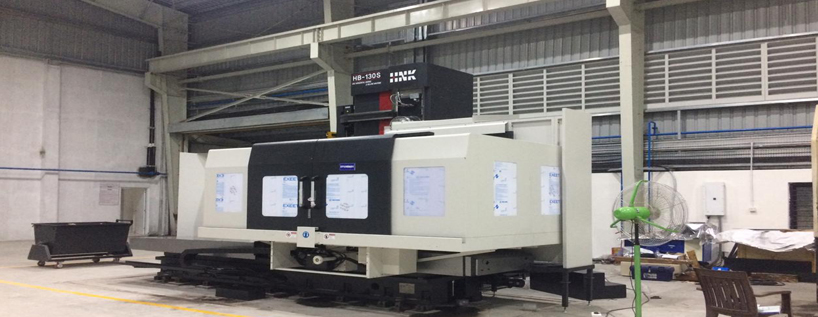

CNC Horizontal Boring Machines Table Type

HNK – HB Series Machine’s state of the art design ensures long lasting heavy duty and precision machining. Dual pinion gear design reduces gear backlash in given directions ensuring precision rotary table positioning and repeatability. The spindle head cooling system ensures the long life of the boring spindle which guarantees high repeatability in machining. We can offer Auto Pallet changing systems to increase productivity by minimizing idle time. Special features like Universal Milling head, Auto Facing head and Probing systems etc can be integrated as per customer’s requirements.

• Spindle diameter: 110mm ; 130mm ; 150mm,
• X Axis longitudinal stroke up to 6000mm,
• Y Axis vertical stroke up to 4000mm,
• Z Axis stroke up to 2000mm,
• W Axis stroke : 500 ~1000mm,
• Table size 1000 X 1100 ~ 3000 X 3500mm,
• Table load capacity 5 Ton ~ 30 Tons,
• Heavy Duty Gear Drive Spindle,
• High Accuracy Rotary Table,
• Milling Heads,
• Auto Facing Head,
• High Pressure Spindle Through Coolant System,
• Renishaw Probing Systems,
• FANUC or SIEMENS CNC Controller
